Because we believe in specialization. The Egyptian German Company for industrial valves ( MAV ) was established under the Egyptian investment law no. 8 of the year 1998 for manufacturing and assembling industrial valves and accessories, in particular Globe valves, to cover the local market demand and export to other countries...
Share Our Success


Because we believe in specialization. The Egyptian German Company for industrial valves ( MAV ) was established under the Egyptian investment law no. 8 of the year 1998 for manufacturing and assembling industrial valves and accessories, in particular Globe valves, to cover the local market demand and export to other countries.

Our company products valves according to din 3202, part 1 , series F, in different material being : cast steel, cast iron and graphite cast iron.

MAV Egypt started production year 2000 to produce Globe Valves, Left Check Valves and Safety Valves in both cast iron (GG25) and cast steel (GS-C25N). It started with the production of size 1/2 "-15, at present it produces sizes up to 5"-125, according to German specifications (DIN)

All the plant equipment are MAV-Germany, whose experts installed the equipment and provided practical training for 14 months to MAV'S technical staff on the production.

Our Mission . Engineering for our future

Our Goal . Customer Satisfaction

Our Main Products : Globe Valves , Lift Check Valves And Strainers Of Cast Steel ..

Type Description PN DN
G1030 Globe valves with stuffing box and hand wheel 16 .. 40 15 .. 200
G1064 Globe valves with bellows and safety stuffing box , with hand wheel 16 .. 40 15 .. 65
G1230 Globe valves with stuffing box and actuator mounting flange as per DIN ISO 4210 16 .. 40 15 .. 65
G3030 Lift check valves 16 .. 40 15 .. 200
S7305 Strainers 16 .. 40 15 .. 65

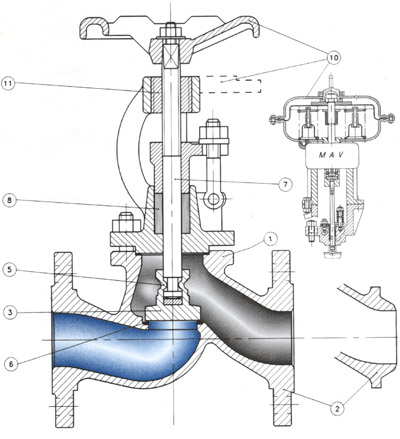

1 - Universal body for globe valves, lift check valves and strainers; face-to-face and end-to-end dimensions as per DIN 3202; Packing and sealing asbestos-free

2 - Body ends: Optionally with flanges and sealing faces as per DIN 2526 (plain flanges, raised face flanges, tongue and groove, male/female, groove for lenticular seal) or butt welding ends with welding grooves as per DIN 2559.

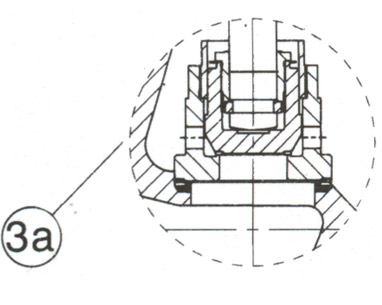

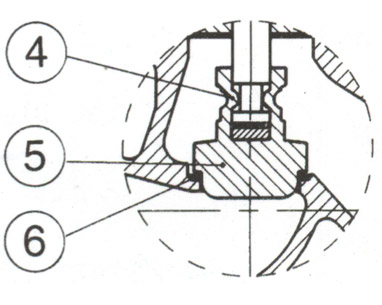

3,4 - Flat disc or disc with regulating shoulder and pressure-relieved disc (3a); further variants on request, such as resilient or special designs permitting throttling and regulating functions in the opening or closing phase ov valve.

5 - Connection between disc and stem may be established by rolling-on or by means of a screwed joint. Thereby compensating tolerance between disc and seat and ensuring high tightness rates.

6 - Corrosion resistant and micro finished body seat ensuring high tightness, little wear and long service life.

7 - Corrosion resistant and overload protected stem of stainless steel.

8 - Asbestos-free stuffing-box packing of pure graphite and carbon fibers: other packing materials on request.

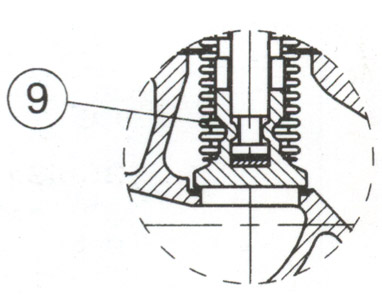

9 - Valves may be optionally equipped with metal bellows for secondary stem sealing (important in applications where toxic, explosive or inflammable fluids are handled).

10 - With hand wheel or actuator mounting flange as per DIN ISO 5210 for optional use of electric actuators. gear operators or components for remote operation. Pneumatic actuators on request.

11 - Screwed bush of nitrated steel with excellent sliding properties for small operating torques and minimum wear.

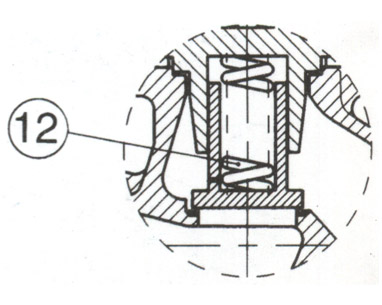

12 - Lift check valves may be optionally supplied with or without return spring.

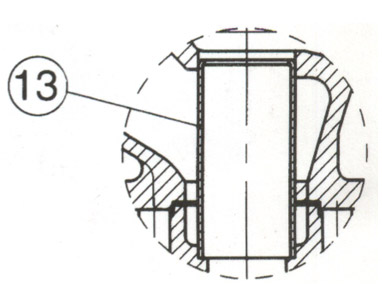

13 - Strainers with high-quality corrosion resistant strainer cartridges.
