• Cast Iron PN 16
• DN 40 – 300
• Type / GT 400 |
| |

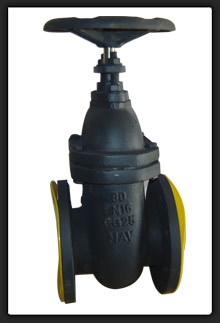

| Economic cast iron, full bore gate valve with brass seats. Conforms to DIN3202 F4 with PN10/16 Flange Connections. Ideally suited for water. |
| |
| Features & Benefits. |
• Specifications to DIN3202 F4
• Inside screw
• Non rising stem
• Cast brass seat
• Bolted bonnet |
|
| |
| Pressure & Temperature. |
• Pressure range Up to 16 Bar
• Temperature range -10 °C to 300 °C |
| |
| |
| Materials Specifications. |
| Body |
Cast Iron GG25 |
| Wedge |
Cast Iron GG25 |
| Body Seat Ring |
Brass |
| Stem |
Shainless Steel |
| Bonnet |
Cast Iron GG25 |
| Handwheel |
Cast Iron GG25 |
| Gland Packing |
Pure Graphite |
|
| |
| Size |
DN 40 |
DN 50 |
DN 65 |
DN 80 |
DN 100 |
DN 125 |
DN 150 |
DN 200 |
DN 250 |
DN 300 |

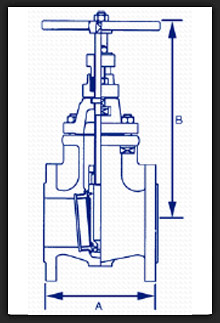

| A |
140 |
160 |
170 |
180 |
190 |
200 |
210 |
230 |
250 |
270 |
| B |
230 |
245 |
290 |
315 |
355 |
415 |
460 |
545 |
635 |
725 |
|
| |
