Because we believe in specialization. The Egyptian German Company for industrial valves ( MAV ) was established under the Egyptian investment law no. 8 of the year 1998 for manufacturing and assembling industrial valves and accessories, in particular Globe valves, to cover the local market demand and export to other countries...
Share Our Success

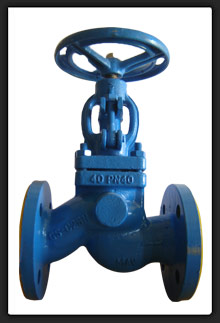

• Cast steel PN 40
• Cast Iron PN 16
• DN 15 – 200
• Type / G 1030

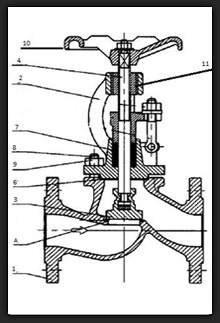

Material specification.


Item No.

Desicription

Material

DIN

1 Body (1) Cast Iron 0.6025
Body (2) Ductile Cast Iron 0.7043
Body (3) Cast Steel 1.0619
2 Bonnet (1) Cast Steel 0.6025
Bonnet (2) Ductile Cast Iron 0.7043
Bonnet (3) Cast Steel 1.0619
A Seat Ring Stainless Steel 1.4021*
3 Plug Stainless Steel 1.4021
4 Stem Stainless Steel 1.4021
6 Bonnet Gasket Graphite/Stainl. ---
7 Gland packing Graphite  ---
8 Stud Bolt Alloy Steel 1.17218
9 Hexagon Nut Alloy Steel 1.1181
10 Handwheel Cast Iron 0.6025
11 Theaded Bushing Carbon Steel 1.0715


Operating Temperature

Pressure - Temperature - Rating
GG-25 GGG 40.3 GS-C25N

PN 16

PN 25

PN 40

-10 16 25 40
20 16 25 40
100 16 25 40
120 16 25 40
150 15.1 24 37.7
200 12.8 23 35
250 11.2 21.8 32
300 9.6 20 28
350 -- 17.5 24
400 -- -- 21
